pouched cat food production line

We provide the complete wet cat food production line,

from raw material processing to filling, cooking, packaging and other equipment.

There are two main product formats for wet pet food: chunks of food in a solid background matrix, sometimes called croutons (CIL), and chunks of gravy/jelly (CIG/CIJ). Pate formats are also popular, especially for cats, but can actually be considered shredded CIL. These formats are typically packaged in cans, trays and bags.

Pouched wet cat food is a very common product form. Usually, the packaging specifications and formulas will be adjusted according to different age stages.

We provide complete production equipment and solutions to meet the production needs of different customers, from raw material processing to filling, sealing, sterilization, etc.

Core Equipment

——————Automatic wet cat food production solution

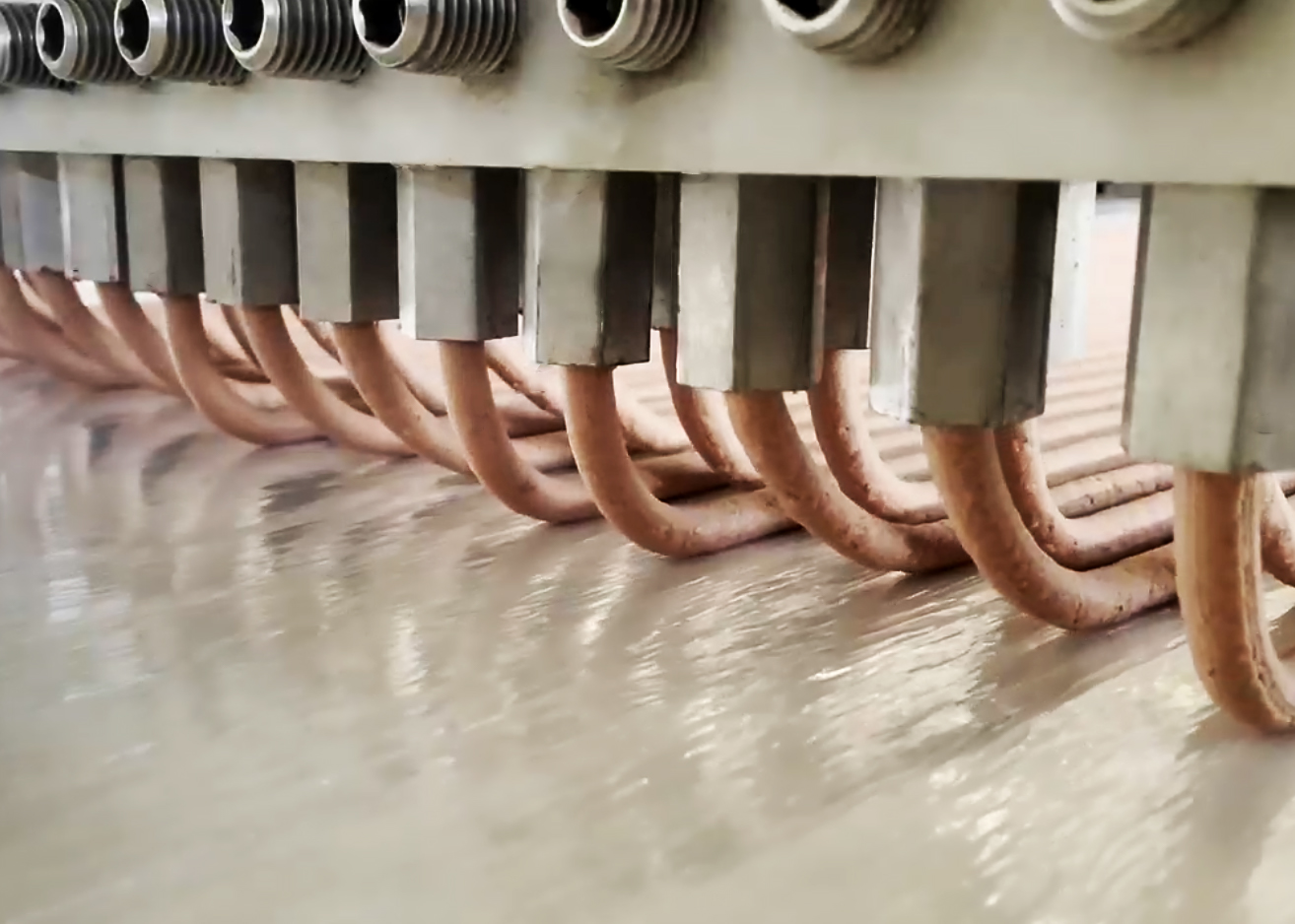

As the core equipment, the forming device of wet cat food equipment is different from that of dry food solution. We use the unique vacuum extruder + multi-specification forming mold. It is more suitable for meat materials in different states and is more conducive to shaping.

With the support of vacuum force, the material can be evenly transported to the molding device to ensure the final uniform molding effect.

According to the requirements of production capacity and specifications, we can customize the corresponding solutions, whether it is a long strip, a square, or an irregular shape, we can achieve it. The size ranges from 8mm in diameter to larger.

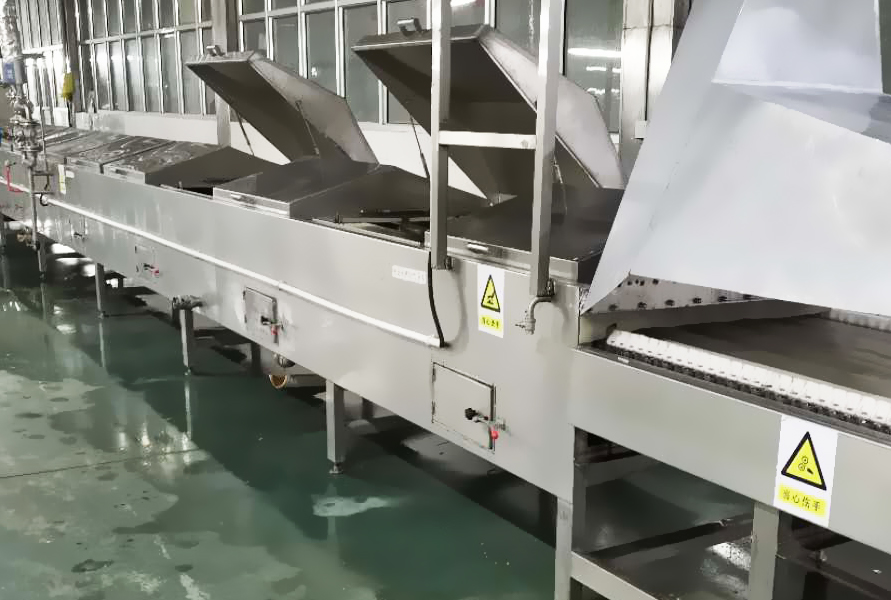

As an indispensable part of the wet cat food production line, the steaming tunnel will be responsible for steaming the formed meat strips. In this way, the meat strips can be shaped and reach the final form of pet food.

The continuous steaming tunnel can achieve fully automatic production without manual assistance, and the process can be automatically operated and adjusted by the centralized control system.

The feedback signal of the temperature sensor coordinates the action of each valve and the injection of steam. The application of Teflon belts ensures that the product will not stick and is easy to clean and maintain.

The speed of the wet food steaming line is adjustable to match the operation of the front and rear sections, and can meet the needs of different processing technologies.

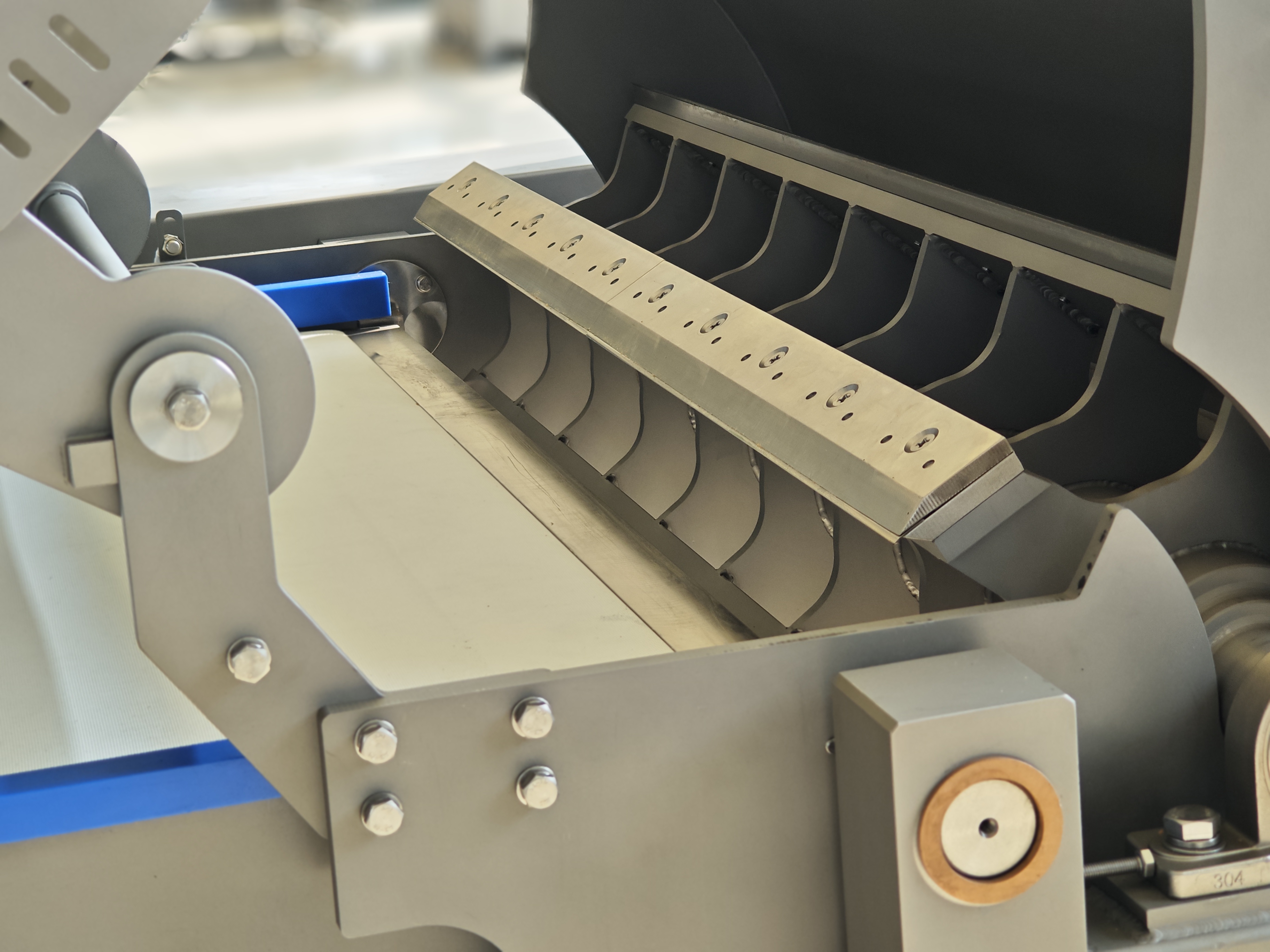

Wet Cat Food Rotary Cutter—Its characteristic is that it can be cut in a rotary manner, which refers not only to the operating structure of the cutter, but also to the fact that the overall cutting part can be adjusted in angle.

This is an attempt to use one machine for multiple purposes. Different cutting angles can obtain different cutting cross-sectional areas. We can also customize cutting shafts of different sizes according to the width of the steaming tunnel. This is the best choice for wet food pet cutting solutions.

Similarly, this set of equipment can be adjusted in speed to meet different production processes. The material of all 304 stainless steel ensures the stability of the equipment.

Introduction video of pouched wet cat food production solution

The complete pouched wet cat food production line includes raw material pre-treatment, extrusion and molding, cooking, cutting, filling and sealing, sterilization, and subsequent secondary packaging.

As the earliest manufacturer in China to develop and manufacture wet pet food equipment, we can provide customers with a complete solution.

Wet pet food includes many specifications, such as bags, cans, chunks with gravy, etc. We are happy to discuss more new product solutions with customers.
